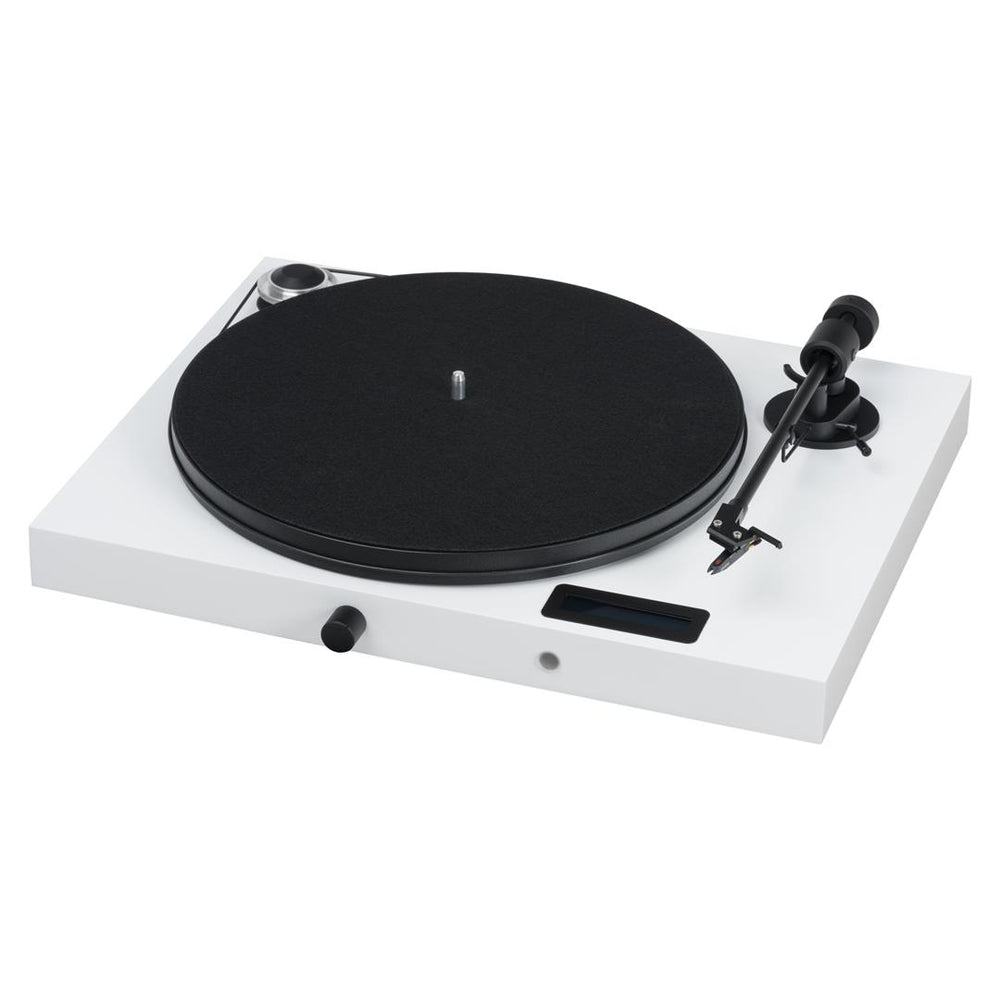

Pro-Ject Juke Box E
The record player itself is based on a modified version of the popular Pro-Ject Primary design. While requiring no complicated set-up, the turntable design still includes premium features like an 8.6” aluminium tonearm with sapphire bearings, Ortofon OM 5E cartridge, perimeter belt-drive operation and a low-vibration synchronous motor with reliable speed stability. To set the turntable up there’s no need to adjust the anti-skate or counter-balance settings, simply install the belt and you’re ready to spin!
Built into the turntable chassis is a premium integrated amplifier with plenty of power and dynamic sound. Boasting 50W per-channel output, the amplifier has a moving-magnet phono stage built-in, based on Pro-Ject’s coveted Phono Box technology. There’s also a wireless Bluetooth input for CD-quality streaming from a compatible smart device, and an additional Line input. So any modern source can also be added to the Juke Box E system.
Though the Juke Box E has everything you need to build a hi-fi system, it’s still possible to take the system even further with the Line and Phono outputs for either adding in a headphone amplifier (such as the Head Box S2), connecting to another larger system or even integrating an Analogue-Digital Converter (such as the A/D Box S2 Phono) for computer recording. The forward-thinking design also follows through to the overall quality of the Juke Box E.
With gold-plated RCA connectors and isolated speaker terminals on the back panel, the Juke Box E carries with it a real sense of prestige. The same can also be said for the overall construction, thanks to the thick, heavy high-gloss plinth, luxury aluminium pulley, included removable dust cover, special decoupling feet and the intuitive display panel on the top-chassis.
Operation is simple thanks to the volume and input information shown on the display, and the 32-step digital potentiometer – with added push function for switching inputs – allows you to set playback at exactly your desired volume. For times when the Juke Box E is out of reach, the supplied remote control helps with switching inputs and adjusting volume, as well as accessing more sophisticated controls including Bass and Treble adjustment and a Loudness boost.
The Juke Box E delivers a true stereo hi-fi system in a box with the simplest of set-up processes. Once again, Pro-Ject Audio Systems are on a mission to make the premium hi-fi vinyl listening experience accessible to as many people as possible, and this time they’ve delivered with an entirely new concept that is sure to turn heads..
The Primary E is available in 2 versions; the Primary E, without phono stage, and the Primary E Phono, with built-in MM phono stage and switchable phono and line output.
• Premium turntable with integrated amplifier built-in
• Simple set-up and operation
• Turntable, Bluetooth and Line inputs
• High-contrast display on top-panel
• Control volume and input with built-in digital potentiometer
• Control all inputs and more advanced features with supplied remote control
• 50W per-channel output (4Ω)
• Phono and Line outputs
• Gold-plated sockets
• Premium belt-drive turntable with manual speed change
• 8.6" aluminium tonearm with sapphire bearings
• Pre-adjusted tracking force and anti-skating force
• Ortofon OM 5E cartridge included
• Low-vibration synchronous motor
• Special turntable feet for effective decoupling
• Dust cover included
• Available in High-Gloss Black, Red or White
Power Output: 2 x 50W (4Ω)
Line Out (Fixed)
Bluetooth (2.1, EDR)
Line (RCA Pair)
Phono Input: For Moving Magnet Cartridges
Replacement Stylus: Ortofon Stylus 5E
Pre-Fitted Cartridge: Ortofon OM 5E
Drive Principle: Belt Drive
Nominal Speeds: 33/45 RPM (Manual Speed Change)
Wow & Flutter:
Platter: 300mm Plywood with Felt Mat
Main Bearing: Stainless Steel in Bronze Bushing
Effective Tonearm Length: 8.6" (218.5mm) Aluminium
Effective Tonearm Mass: 8.0g
Counterweight: For Cartridges Weighing 3 - 5.5g
Tracking Force Range: 0 - 25mN (Set at 18mN for OM 5E)
Power Consumption: 4.5W max.
Dimensions (W x H x D): 415 x 118 x 334mm
Weight: 5kg (net.)
EAN: Black: 9120097821157
